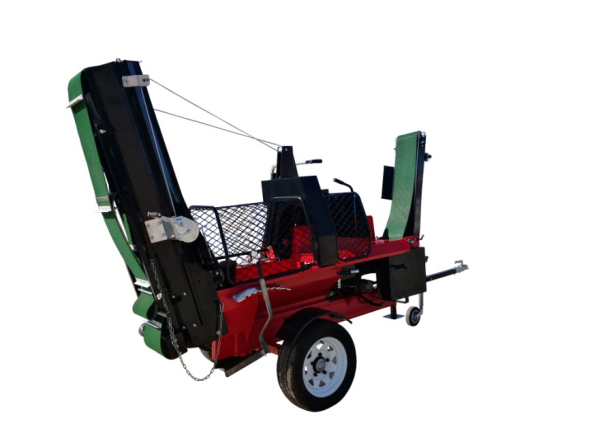

FP20
发布时间：2023-05-19 22:06
| Description | Firewood processor |
| Model | FP20 |
| Max Splitting Force | 20T |
| Cycle Time | 8seconds |
| Splitting Length | Adjustable from 150 up to 610 mm |
| Recommended Log Diameter: | 12" (300 mm) |
| Max Log Diameter | 16" (400mm) |
| Work Efficiency | 5m3/h |
| Power | 15HP gasoline engine |
| Engine Displacement | 420cc |
| Fuel Tank Capacity | 6.5L |
| Engine Oil Capacity | 1.1L |
| Gross Torque | 25N.m/2500rpm |
| Firewood Conveyor | Length:3.2m (Height adjustment with winch) |
| Width of belt:250mm | |
| Width of chute:400mm | |
| Hydraulic rotator:1set | |
| Chain Saw | 21'' |
| Chain Saw Rotate Speed | 5600rpm |
| Sawing Speed | Adjustable |
| Oil Pump | 22GMP, 2-stage |
| Oil Tank Capacity | 34L |
| Tyre | 22'' (195/60-R14) |
| Knife | 4 ways (6 ways optional) |
| Weight | 510kg |
| Package size | 2270x960x1130mm |
| Units/20’: | 12Units |
